Choosing a motherboard isn’t just about sockets and chipsets – the motherboard’s size determines your case compatibility, expandability, cooling potential, and even the overall aesthetic of your build. The three most common consumer form factors – ATX, Micro‑ATX, and Mini‑ITX – each serve different needs, , from high-end workstations to compact home theater PCs. In this guide, we break down their exact dimensions, key features, and ideal use cases to help you pick the perfect board for your next build.

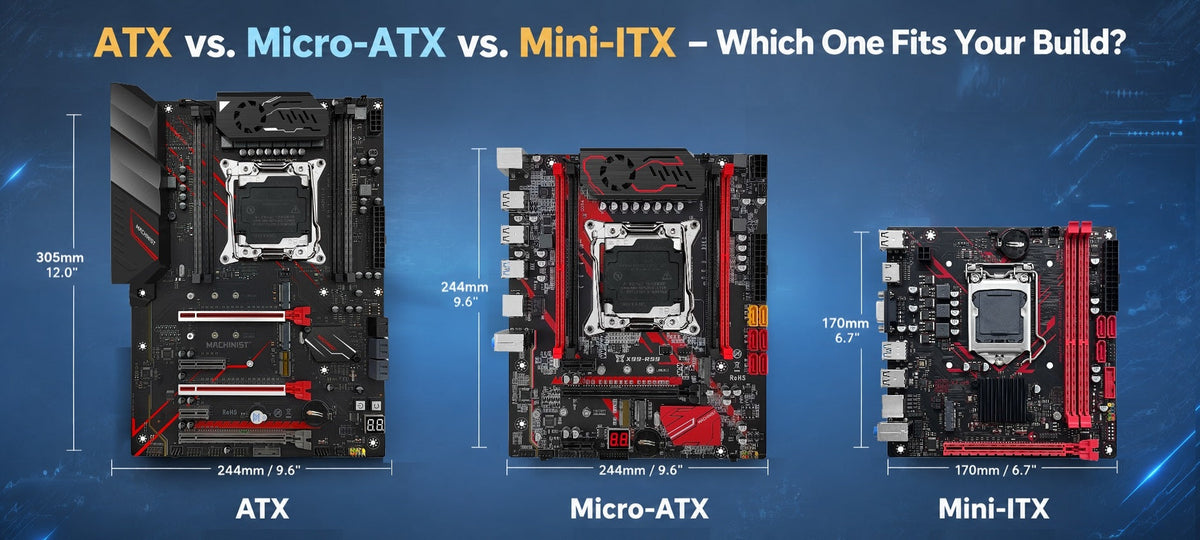

ATX (305mm × 244mm): The Full‑Size Workhorse
Advanced Technology Extended (ATX) is the traditional full-size motherboard standard and has long been the gold standard for mainstream high-performance desktop builds. Measuring 305mm × 244mm (12 × 9.6 inches), it offers the largest layout and most abundant expandability among the three mainstream form factors.
Thanks to its spacious circuit layout, ATX motherboards pack comprehensive hardware interfaces and expansion slots. Most models come with 4 DDR RAM slots, supporting maximum memory capacity and dual-channel or quad-channel memory configurations for heavy multitasking. They feature 3 to 5 PCIe slots, allowing users to install multiple graphics cards, sound cards, capture cards, and expansion cards simultaneously. Additionally, ATX boards offer more SATA ports and M.2 slots for ultra-fast SSD storage, delivering superior storage scalability.
In terms of heat dissipation, the large PCB surface leaves ample internal case space for bulky CPU coolers, multiple case fans, and custom water-cooling loops, effectively solving heat accumulation issues during long-term high-load operation.
▪️ High-end gaming PCs pursuing extreme performance and multi-device expansion
▫️ Professional workstations for video editing, 3D rendering, graphic design, and AI computing
▪️ Long-running home and small-office servers requiring stable performance and multi-hardware compatibility
▫️ Enthusiast builds with custom water cooling and full-set peripheral expansion
Micro-ATX (244mm × 244mm): The Balanced All‑Rounder
Micro-ATX (often shortened to M-ATX) is a compact, square-sized variant of the standard ATX form factor, with precise dimensions of 244mm × 244mm. It strikes a perfect balance between size, performance, and cost, making it the most cost-effective and versatile option for most ordinary PC builders.
Retaining the core advantages of ATX while cutting redundant layouts, M-ATX motherboards typically reserve 4 DDR slots and complete high-speed M.2 and SATA storage interfaces, fully meeting the memory and storage needs of daily use, gaming, and office work. The number of PCIe expansion slots is slightly reduced compared to full ATX boards, but it still supports independent graphics cards and mainstream expansion hardware, covering 90% of consumer usage scenarios. Its smaller size improves internal case space utilization, ensuring sufficient heat dissipation while supporting relatively compact tower cases.
Compared with ATX motherboards, M-ATX models are more affordable with lower premium costs, avoiding the performance waste caused by excessive expandability for ordinary users. Meanwhile, it maintains good compatibility—most mid-tower ATX cases can perfectly support M-ATX motherboards, offering flexible case selection.
Ideal Use Cases:
◾ Cost-effective mainstream gaming builds for 1080P/2K gaming
▫️ Daily office, study, and family entertainment desktop PCs
◾ Mid-range creative work devices for simple video editing and image processing
▫️ Users who want balanced performance and space savings without pursuing extreme expansion
❕ Drawback: Fewer PCIe slots mean you can’t run dual GPUs or add many expansion cards; also, high‑end overclocking may be limited compared to premium ATX boards.
Mini-ITX (170mm × 170mm): The Tiny Titan
Mini-ITX is the smallest mainstream consumer motherboard form factor, with a tiny square size of only 170mm × 170mm (6.7 × 6.7 inches). Designed for ultra-compact small form factor (SFF) builds, it abandons redundant expandability to prioritize space savings and portability.
Limited by its tiny PCB area, Mini-ITX motherboards usually come with only 2 DDR RAM slots, 1 main PCIe x16 slot for graphics cards, and a small number of M.2/SATA ports. Its expandability is the weakest among the three form factors, but it retains complete core functions, supporting mainstream CPUs and independent graphics cards to meet daily office, online entertainment, and mainstream gaming needs. Most Mini-ITX boards also integrate high-quality audio chips and network interfaces, ensuring basic usage experience.
The biggest advantage of Mini-ITX lies in its ultra-small size. It can be installed in mini cases, ITX chassis, and even customized compact hosts, greatly saving desktop space. Its lightweight body also makes it convenient for movement and placement. However, the compact internal space leads to higher heat dissipation pressure, so most Mini-ITX builds are matched with low-power hardware and compact cooling systems.
Ideal Use Cases:
▪️ Desktop replacement hosts with strict space limitations
▫️ Home Theater PC (HTPC) for living room video playback and entertainment
▪️ Portable mini hosts and customized SFF gaming PCs
▫️ Light-duty server and industrial control equipment requiring compact size and stable operation
❕ Drawback: Higher price per feature – because everything is squeezed onto a small PCB, ITX boards often cost more than mATX boards with similar chipsets. Also, upgradeability is limited, and building in a tiny case can be frustrating for beginners.
How to Decide – Practical Advice
Start with your case – If you already have a case, check its supported form factors. Many mid‑towers support ATX and mATX, while small cases may only fit ITX.
Think about your GPU – Do you plan to run a single large graphics card? All three support that. But if you want dual GPUs (for machine learning or rendering), you must go ATX. Also, some ITX cases limit GPU length – always check clearance.
Consider future upgrades – If you like tinkering and adding new PCIe cards (e.g., a 10G Ethernet adapter, a sound card, or an extra M.2 adapter), ATX gives you the most room. mATX offers a reasonable middle ground, while ITX locks you into what you have at build time.
Budget vs. features – mATX often gives you the best features for the least money. For example, a B760 mATX board might have Wi‑Fi, 2.5G LAN, and two M.2 slots for under $150, whereas a comparable ATX board might cost $200+, and an ITX board with the same chipset could be $180+.
Aesthetics and desk space – If you love a minimalist setup, ITX or even smaller (like Nano‑ITX) can look stunning. If you want a showpiece with RGB and a side window, ATX offers more surface for lighting and larger heatsinks.
Final Thoughts
◾ ATX is the go‑to if you want maximum performance, expandability, and overclocking – no compromises.
◾ Micro‑ATX is the smart choice for 90% of users – it balances size, cost, and features perfectly, and it fits most builds.
◾ Mini‑ITX is for those who prioritise portability or a tiny footprint, and who are willing to sacrifice expandability for a neat, compact machine.
No single form factor is “best” – it all depends on your needs, your case, and your budget. Map out your components first, check clearances, and then pick the motherboard that fits like a glove. Happy building!
